Thông tin chi tiết sản phẩm:
|
| Vật liệu công nghiệp: | EPS, xi măng sợi, mùn cưa | năng suất máy: | 600-1500 tờ |
|---|---|---|---|
| Hoàn thành sản phẩm: | eps tấm tường | Bảo hành: | 12 tháng |
| Kết cấu của vật liệu: | Thép | Kiểu: | Đứng miễn phí |
| Chất lượng: | ISO | Ứng dụng: | sản xuất tấm |
| Làm nổi bật: | sandwich panel line,eps sandwich panel machine |
||

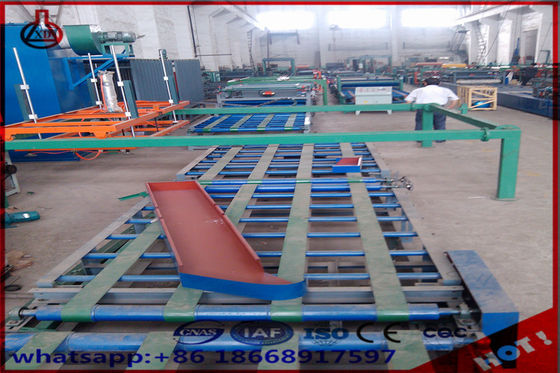

Environment friendly Mgo EPS sandwich panel production machine with ISO quality system
1. Specific of the panels
| Sandwich Panel Spec | ||
| Min. cutting length | 3 meters | |
| Max. stacking length | 15m | |
| Panel width | 1000mm (can be designed as per client’s requirment) | |
| Panel thickness | Mini thickness | 40mm (corrugated sandwich panel) 50mm (wall panel) |
| Max. thickness | 150mm(exclude corrugated sandwich panel) | |
| Steel Sheet Spec | ||
| Thickness | 0.4-0.7mm color steel sheet | |
| Width | 1250mm (can be designed as per client’s requirment) | |
| Max. coil weight | 10 tons | |
| Inner Dia. of coil | 508mm | |
| Whole Line Spec | ||
| Working speed | About 3-7m/min (adjustable) | |
| Total length | about 105m | |
| Working height | 1200mm (height of panel coming out) | |
| Pressure for foaming | 150-200 bar | |
| Double belt conveyor | 23m | |
| Control mode | Mitsubishi PLC and converter | |
| Total power | About 100Kw (as per final designing) | |
| Power required | 380V/3phase/50Hz or as per customer's requirement. | |
| Air pressure | 0.7Mpa (for buyer to prepare) | |
2. EPS Sandwich Panel Machine Model:
According to different productivity from 200 sheets to more than 1200 sheets per eight hours, the EPS sandwich panel machine has different models for big-scale, middle-scale and mini-scale. All machine can produce board with the same quality and specification panels, only has different productivity.
For whole sandwich panel machine production line, we have common type, semi-automatic type and fully-automatic type, you can choose any kind of production line according to your own requirement.
3. Advantages of the Sandwich Panels:
1. Designed by 15 years experienced R&D members with lifetime seivices.
2. We are "All-in-house source" factory to ensure quality and delivery of your machines.
3. Machine’s lifetime>15 years
4. Quick delivery: in only 5-8 weeks for urgent order .
5. Introduced Mitsubishi PLC and touch screen for machine’s control system.
6. Have our own tool center: 12 sets of CNC machines.
7. High Pricision perofrmance: Shafts are tooled by grinding machine for two times. Rollers are tooled by CNC machines.
8. Technician can be sent to your factory to install machines and train your workers.
4.Take 1200mm*2400mm*8mm mgo board an example in China
MGO BOARD CONSUMPTION COMPARABLE TABLE
| Names of raw materials | Each dosage |
| Magnesium | 2.978 yuan |
| Magnesium chloride | 1.23 yuan |
| Non-wovens | 0.85 yuan |
| Glass cloth | 1.05 yuan |
| Perlite | 0.62 yuan |
| Sawdust | 0.647 yuan |
1 |
Air-dry density | ≤ (Standard index)50kg/m2 | (Test Value) 30.0kg/ m2 |
| 2 | Drying shrinkage rate of the board | ≤0.08% | 0.015% |
| 3 | Anti-breaking load | ≥1400N | 5640N |
| 4 | Anti-impact | No breakage phenomenon such as cracking after three impacts | No breakage phenomenon such as cracking after three impacts |
| 5 | Thermal resistance of main section (T=90mm) | ≥1.35(m2.k)/w | ≥1.36(m2.k)/w |
| 6 | Thermal bridges area ratio | ≤8% | 2.22% |
| 7 | Sound reduction Index | 36dB | |
| 8 | Radioactivity | None |
5.Certificate: ISO 9001, CE,
