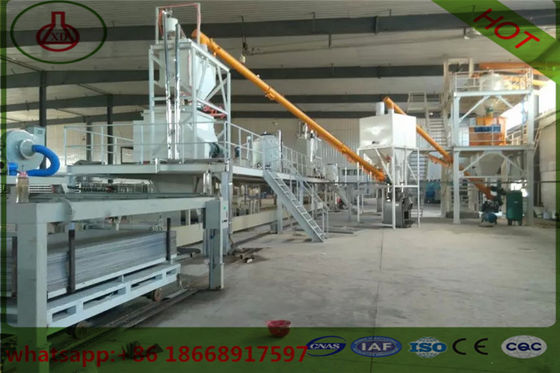

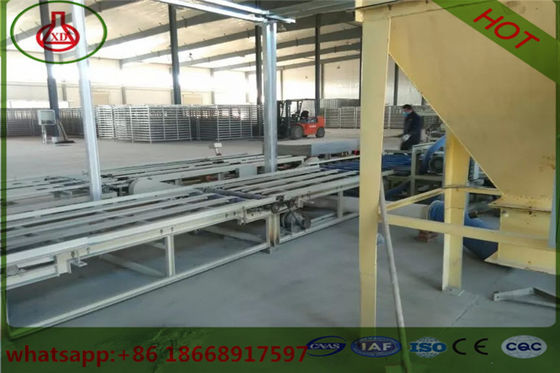

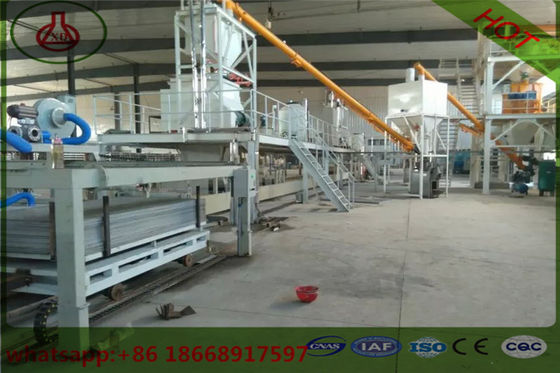

fireproof Calcium Silicate Board Production Machinery / waterproof Fiber Cement Plate Line
Production conditions
Required Raw Material:
fiber cement board is made of cement ,sand, or any kind of crop straw and inorganic material (such as talcum powder and powder coal ash) after special technology. So this project has low production cost, small investment and fast effectiveness.
Wall Board Performance.
| 1 | Air-dry density | ≤ (Standard index)50kg/m2 | (Test Value) 30.0kg/ m2 |
| 2 | Drying shrinkage rate of the board | ≤0.08% | 0.015% |
| 3 | Anti-breaking load | ≥1400N | 5640N |
| 4 | Anti-impact | No breakage phenomenon such as cracking after three impacts | No breakage phenomenon such as cracking after three impacts |
| 5 | Thermal resistance of main section (T=90mm) | ≥1.35(m2.k)/w | ≥1.36(m2.k)/w |
| 6 | Thermal bridges area ratio | ≤8% | 2.22% |
| 7 | Sound reduction Index | 36dB | |
| 8 | Radioactivity | None |
| High density | 1.4≤ D≤ 1.7 | ≤ 28 | __ |
| Compressive Strength | ~20 MPa (3, 000 PSI) |
| Impact Resistance | > 6 kJ/m2 |
| Tensile Strength | > 5.5 MPa |
| Density (Specific Mass) | ~1000 Kg/m3 (+/-< 2%) |
| Moisture Absorption |
~26% maximum saturation (slow absorption rate) |
| Moisture Content | ~6% |
| Water Vapour Diffusion | ~28 / 35 |
| Specific Heat | ~930 J/kgK |
| Thermal Conductivity | ~0.44 W / mK |
| Modulus of elasticity | ~6045 N/mm2 |
| Flexibility UNI E 12372 |
~20.1 N/mm2 maximum 12mm x 1220 x 2440 = 10 N/mm2 |
| Surface Alkalinity | ~10 Ph |
| Thermal Expansion Hot/Cold | 0, 01 mm/mC (from temp +20C to -20C) |
| Expansion in Water | less than < 0.02% from ambient to saturation |
| Freeze / Thaw - UNI EN 520 | 100 cycles without notable effects |
| Frost Resistance | no water drops form on surface |
| Combustibility / Fire Ratings |
non-combustible / 12mm exceeds 1 hr fire rating |
| Dimensional tolerance |
thick 0.2mm / width 2mm / length 3mm / Sq. 3mm |
|
Toxicity Pollutants Heavy Metals - UNI EN 12457-2 |
Below measurable levels of test instruments |
| Asbestos Analysis | Absent - not measurable |
| Formaldehyde Analysis | Absent - not measurable |
| Sound Attenuation (9mm) | tested design ASTM E90 = STC 48, 50, 55, & 60 |
| Color | Slate Grey and Chalk White |
| Surface texture | smooth one side; uniform machine textured back |
| Basic Compounds |
(MgO)+(natural silicates)+(glass fibre) +(wood fibre) |
