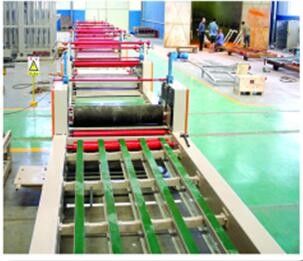

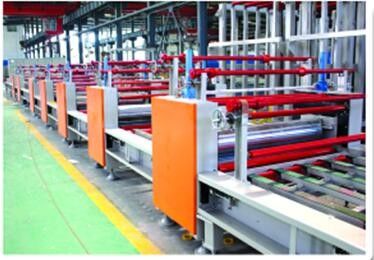

Multifunction Sandwich Panel Machine Light Weight Wall And Cement Board Production
We are an experienced manufacturer of MgO Board making machine . We have it with different automatic levels. The machine line includes: automatic dosing system, forming machine, board receiving machine, solidification, demoulding machine, cutting machine
Raw materials are MgO powder, MgCl2, fiber glass, nonwoven fabric, perlite, etc.
Product capacity: 1200pcs/8hour (according to 10mm thick wet board calculation)
Finished product Size: 1220*2440mm
Thickness: 3, 6,10,12, 16, 18 mm
The MgO board is environmental friendly, high fireproof and waterproof, can be painted, laminated. nailed and sawn. It is widely used for ceiling, wall panel, decorating of indoor wall and lining board for furniture.
MgO board can replace three-ply board, five-ply board, flakeboard, MDF (Medium Density Fiberboard ) and Gypsum Board.
Magnesium oxide board producing flow chart
More details of MGO board making machine
| Machinery Parameters |
| Configuration: |
Automatic metering system |
| Capacity |
2000 sheets per day |
| MGO board Thickness |
3-25mm |
| MGO board Length |
2440~3600mm, |
| MGO board Width |
1220mm |
| Raw materia |
1 MGO powder |
| 2 Sulfate |
| 3 fliber glass mesh |
| Finished board type |
1. MGO board |
| 2. fiber cement board |
Company Information
Our company was established by one professional team with more than 30 years experience on EPS machine and Mgo board assistant equipment. we have our own factories and partners to cooperate together. Our customers has been extended all over the world, the company is developing and growing up rapidly
1. Usgae and Technology Index of Product
The Magnesium board is made of filling materials ,such as sawdust and all kinds of crushed plant
straw (you can select any one kind )and several chemical raw material which are token as
modified material after special technology .the board has such features:quickly hardening ,high
strength ,large-format ,fireproof ,damp-proof and good waterproof performance.It can be nailed
,planed and stuck,so it can be used widely at indoor decoration ,such as wall skirting and ceiling
of market,hotel,club ,station ,office building and living room and it also can get large usage at
top-grade furniture,door and partition .this product is made from wasteb materials,and it is ideal
product which can replace all kinds of wood board with reasonable price and good quality.
2. Product features
The product manufactured by this equipment has following features:fireproof ,waterproof,environment protection and no toxicity .at the same time it is resistant against acid,alkali and aging. This product can be nailed,planed ,sawed and sticked.in the view of that its fireproofing grade is A .so our product will not be combustible when the fire is 800-1000C.at the same time when our product is fell to the water for a week ,there are not the following phenomenon such as chalking,deformation and warp.in light of there is not glue in the raw materials.so there is not formaldhyde and benzenz for our boards .
3. Technology index
| Oxygenic index % |
>90 |
| Level combustion |
SO |
| Vertical combustion |
SO |
| Water content rate |
10.9% |
| Capacity |
1.15g/cm3 |
| Static bending intentsity |
169.46Mpa |
| Density |
T/m3 1.13 |
Water resistance :Without chalking for 24 hours and there is no change on surface
No “Three-waste” (waste water ,waste gas ,waste residue),no pollution and environmental protection .
