Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Máy ép khuôn xây dựng | Năng lực sản xuất: | 1500 tờ |
|---|---|---|---|
| Kết cấu của vật liệu: | Thép | Bảo hành: | 1 năm |
| Lớp tự động: | Tự động | Nguyên liệu thô: | Mgo, mgcl, lưới sợi thủy tinh |
| Tiêu chuẩn: | CN | Kiểu: | Đứng miễn phí |
| Làm nổi bật: | sandwich panel machinery,wall panel equipment |
||

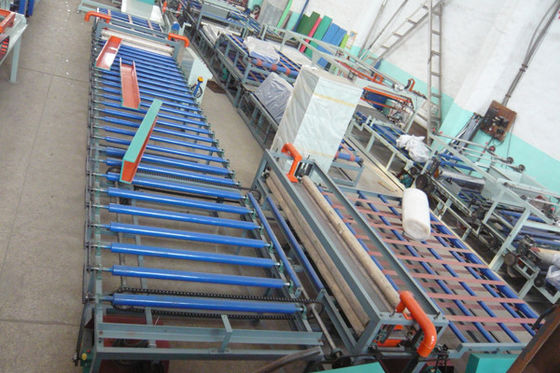

Full Automatic Building Moulding Construction Material Making Machinery with 2.2KW - 4KW Power
|
Product Name |
Building Moulding Board machine |
Production capacity |
1500 Sheets |
|
texture of material |
steel |
Warranty |
1 years |
|
Automatic grade |
Automatic |
raw material |
Mgo,mgcl,fiber glass mesh |
|
Standard |
CE |
type |
free standing |
I. Equipment structure and feature
1. The machine adopts Chuangxin production technology to spread material and spread no-woven cloth for many times as well as strengthen the middle part of the manufactured product. The equipment runs stablely with reasonable structure, easy operation and high precision, and the production personnel can get the relevant technology after easy training.
2. One equipment can manufacture several products, it can produce not only building moulding board but also fireproof board and ceiling board.
II. Equipment specification and technical parameter
Name: Production Line for Building Moulding Board
Outside size: 18000×1800×1500~2100×1800×1600(mm)
Power supply: 380V
Power: 2.2KW~4KW
Running method: timing and fixed speed
III. Moulding board performance and feature
Performance index (Note: Actual values of National Research Center of Testing Techniques for Building Materials)
1. Apparent density t/_ 1.18
2. Water absorbing capacity _ 22.4
3. Anti-fracture Mpa 22.0
4. Resistance to tension Mpa 6.4
5. Impact resistance KJ/M2 10.1
IV． Features
This product can be used repeatly with such following features: waterproof, anti-breaking, anti-impact, even & glazed surface, easy operation and low cost, and it can be nailed, sawed, planed and sticked. It can replace steel moulding board, 5 ply panel, 9 ply panel and bamboo & wood moulding board, and be applied in all kinds of casting concrete engineering.
After purchased the equipment, our company will take responsibility for trainning technical personnel until he can get the skill.
There are many professional technical personnel in our company, they will offer consultation about the equipment and technology as well as technical training on site for free. And they will go to your factory for installation and testing for free.
Welcome you to our company for a site visit, we will service for you sincerely.
mgo board machine mgo board production line
