Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Máy ép khuôn xây dựng | Năng lực sản xuất: | 1500 tờ |
|---|---|---|---|
| Kết cấu của vật liệu: | Thép | Bảo hành: | 1 năm |
| Lớp tự động: | Tự động | Nguyên liệu thô: | Mgo, mgcl, lưới sợi thủy tinh |
| Tiêu chuẩn: | CN | Kiểu: | Đứng miễn phí |
| Làm nổi bật: | mgo board machine,wall panel equipment |
||
Multi Functional Board Making Machine for Building Construction Indoor Partition
Newest Full Automatic Multi-functional Board Making machine with high quality
Multi-functional Board Production Line
It not only can produce Wall Panel, but also produce Single MgO board.
1. Specification of Board:
Wall board:
Length: unlimited.
Width: 60cm ---- 120cm (Adjustable)
Thickness: 1cm----15cm (Adjustable)
Mgo Board
Length: unlimited.
Width: Maximum 1.3 m (Adjustable)
Thickness: 2mm-60mm (Adjustable)
Standard Specification of the board is 1.22mX2.44m
2. Machine Model:
According to different production capacity from 800 square meters to 3000 square meters per eight
hours wall board-making machine has different models for large-scale, middle-scale and small-scale.
All machine can produce board with same best-quality and specification board, only has different
production capacity.
For whole production line, we have common one, semi-automatic one and full-automatic one, you
can choose any kind of production line according to your own condition.
3. Application of Wall Board:
The wall board produced by our machine will replace solid brick as indoor partition, wall of steel
structure and frame structure as well as wall of removable houses. Its products can be used for
outside wall heat-preserving in northeast area of China.
4. Board performance:
|
1 |
Air-dry density |
≤ (Standard index)50kg/m2 |
(Test Value) 30.0kg/ m2 |
|
2 |
Drying shrinkage rate of the board |
≤0.08% |
0.015% |
|
3 |
Anti-breaking load |
≥1400N |
5640N |
|
4 |
Anti-impact |
No breakage phenomenon such as cracking after three impacts |
No breakage phenomenon such as cracking after three impacts |
|
5 |
Thermal resistance of main section (T=90mm) |
≥1.35(m2.k)/w |
≥1.36(m2.k)/w |
|
6 |
Thermal bridges area ratio |
≤8% |
2.22% |
|
7 |
Sound reduction Index |
|
36dB |
|
8 |
Radioactivity |
|
None |
5. After-sale
After purchased the equipment, we will teach relevant technology for free, and will go to your factory
for installation and testing until you can produce the qualified product by yourself. Our company
will train 2-3 technical personnel for free until he can get the skill. We will take responsibility for
provide technical consultation and following-up service for a long time, the equipment warranty period
is one year
6. Board Picture:

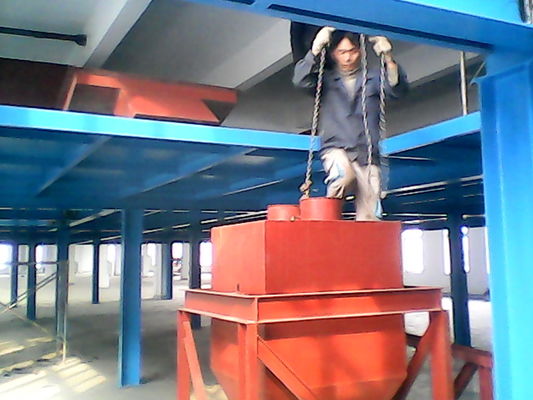

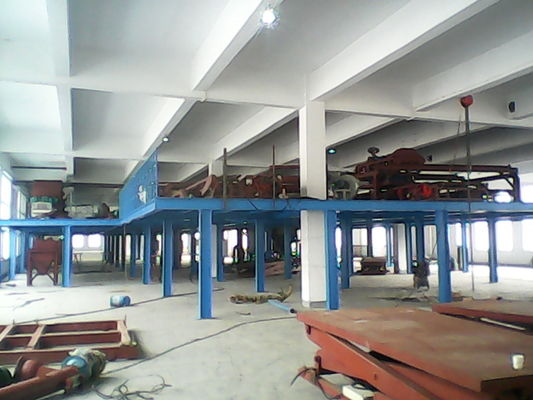

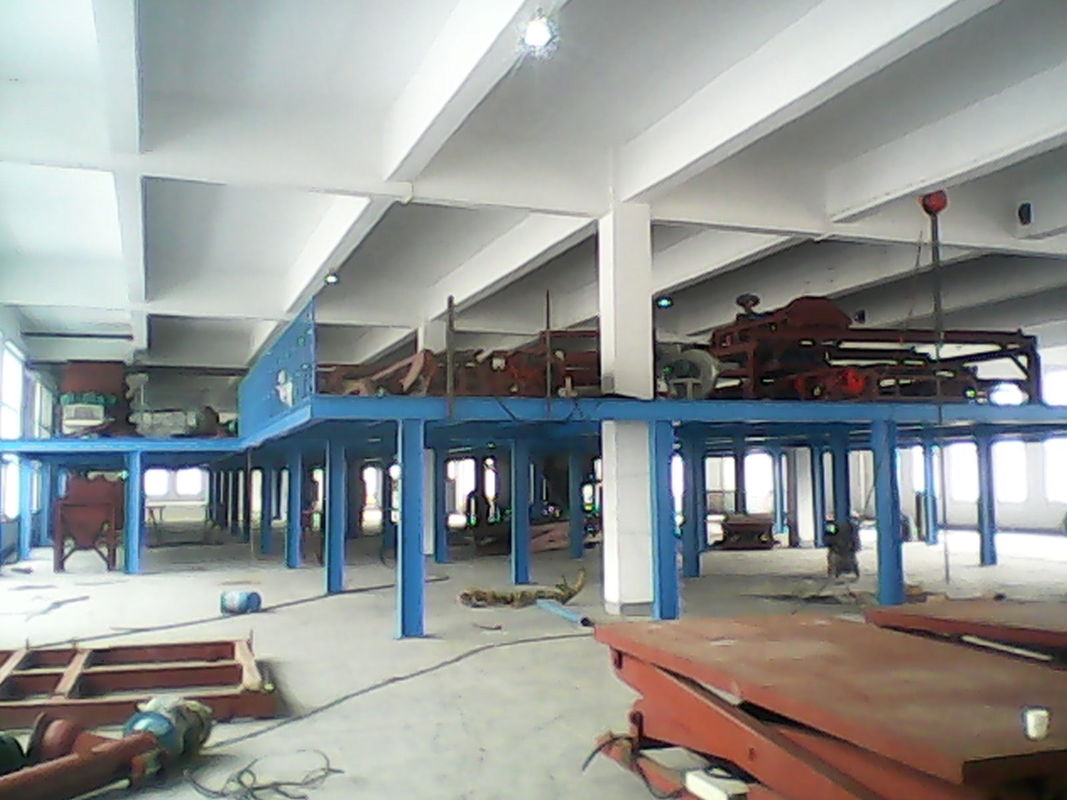

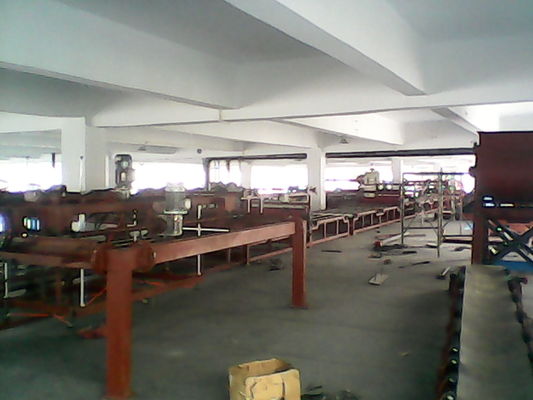

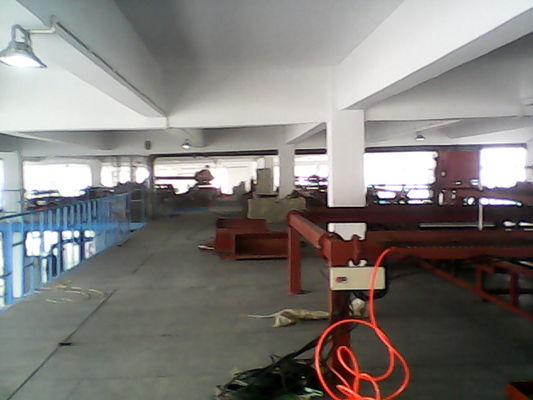

7. Machine Picture:
