Thông tin chi tiết sản phẩm:
|
| Màu sắc: | Màu xanh da trời | Nguyên liệu thô: | mgo/mgcl2/mùn cưa |
|---|---|---|---|
| Kích thước: | 25m*1.58m*1.8m | Quyền lực: | 54kw |
| Năng lực sản xuất: | 1200 tờ | Điện áp: | 380V |
| Ứng dụng: | làm bảng | ||
| Làm nổi bật: | Construction Material Making Machinery,polyurethane sandwich panel machine |
||

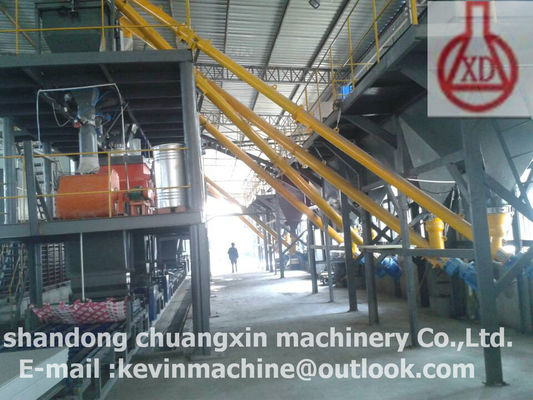

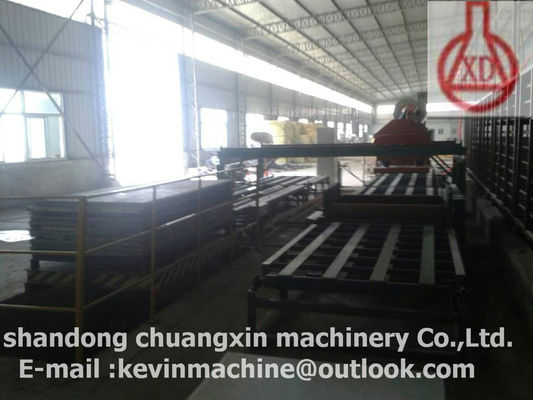

Production Line For Magnesium Oxide Board Making Machine with Mgo/Mgcl/Sawdust
1. Product
About this production line ,among which ,Glue spreading-overlaying-drying Machine and Glazing Machine are equipments which will give the advanced processing to the board .the above two machines can overlay ang glaze the magnesium oxide board and ordinary wood board . the Glue spreading-overlaying-drying Machine can overlay wood-grain paper,PVC film and boeing film.the Glazing Machine will glaze the overlaid board with wood-grain paper,and make the baord with bright light or dull light .the above processing will replace former painting working processing .(because the wood-grain paper is not wearable and it has no gloss degree)
EQUIPMENT CONTRIBUTION CONDITIONS
| frequency | pressure | equipment | rooms | capacity |
| 50HZ | 380V | 1.7million M2 | 12M*80M/9M*40M | 10KW-15KW |
2.product features
The product manufactured by this equipment has following features : fireproof, waterproof,environmental protection and no toxicity ,at the same time it is resistant against acid, alkali and aging .this product can be nailed,planed,sawed and stuck.in view of that its fireproofing grade is A .so our product will not be combustible when the fire is 800-1000C .At the same time when our product is fell into the water for a week.there is not following phenomenon such as chalking,deformation and warp.in light of there is not glue in the raw material ,so there is not formaldehyde and benzene for our baord .
| Advantages | ||
| Number | Item | Content |
| 1 | Low cost | Low labour and raw materials costs |
| 2 | Long life | Up to 30 years |
| 3 | Recycling use | Reused for more than 8 times |
| 4 | Environment protection | Environment-friendly raw materials used |
| 5 | Flexible layout | adjusted according to your requirement |
3. raw materials and cost analysis
the product is formed with crushed crap straw or sawdust and some inorganic chemical materials at one time after roller-extruding . the source of raw materials is widely and they are purchased easily for customers.
Take 1200mm*2400mm*8mm mgo board an example in China
MGO BOARD CONSUMPTION COMPARABLE TABLE
| Names of materials | Each dosage |
| Magnesium | 2.978 yuan |
| Magnesium chloride | 1.23 yuan |
| Non-wovens | 0.85 yuan |
| Glass cloth | 1.05 yuan |
| Perlite | 0.62 yuan |
| Sawdust | 0.647 yuan |
4. Technology features
There is not any requirment about high temperature and high pressure during production processing.the board will be formed at one time after roller-extruding under the condition of normal temperature and normal pressure .this is a green environmental-protection project .because there is no waste materials, waste water and waste gas during its production processing .the finished board don't need high temperature drying,air-drying,watering ,and under the normal temperature,they will dry well indoor .
1 |
Air-dry density | ≤ (Standard index)50kg/m2 | (Test Value) 30.0kg/ m2 |
| 2 | Drying shrinkage rate of the board | ≤0.08% | 0.015% |
| 3 | Anti-breaking load | ≥1400N | 5640N |
| 4 | Anti-impact | No breakage phenomenon such as cracking after three impacts | No breakage phenomenon such as cracking after three impacts |
| 5 | Thermal resistance of main section (T=90mm) | ≥1.35(m2.k)/w | ≥1.36(m2.k)/w |
| 6 | Thermal bridges area ratio | ≤8% | 2.22% |
| 7 | Sound reduction Index | 36dB | |
| 8 | Radioactivity | None |
5. service
After purchased the equipment ,we will teach relevant technology for free.and will go to your factory for installation and testing until you can produce the qualified product by yourself.our company will train 2-3 technical personnel for free until he can get the skill.we will take responsibility for provide technical consulation and following-up service for a long time .the equipment warranty period is one year.
