Thông tin chi tiết sản phẩm:
|
| Vật liệu: | Thép | Lớp tự động: | Hoàn toàn tự động |
|---|---|---|---|
| Nguyên liệu thô: | mgo, mgcl2, lưới sợi cỏ | Điện áp: | 380V |
| Ứng dụng: | làm bảng | Bảo hành: | 1 năm |
| Công suất sản xuất: | 1200 tờ | ||
| Làm nổi bật: | Construction Material Making Machinery,polyurethane sandwich panel machine |
||
Steel Sandwich Panel Magnesium Oxide Board Machine for Prefabricated House Design
1. product information

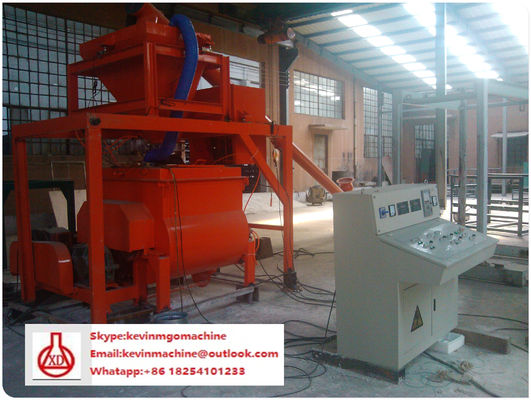

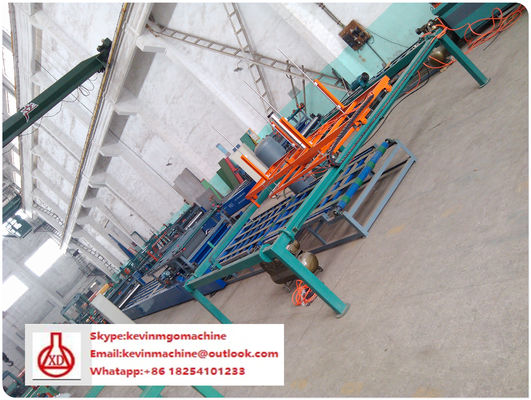

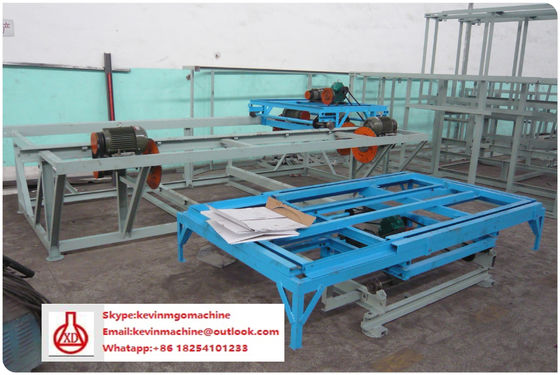

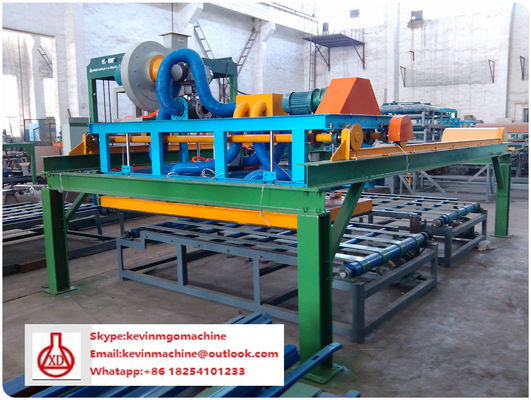

The production line for mgo board is composed of board-making machine,glue-spreading and veneering-drying machine and glazing machine.according to the production and the automatic degree, this production line is divided into 6 models and three specifications ,such as large ,middle and small specification.The production line for mgo board has :production workshop ,finished product workshop and raw material warehouse . workshop:100---1000m2,worker:3---6person,water:ordinary water,electricity:1.1—10KW(according to different scale)
| frequency | pressure | equipment | rooms | capacity |
| 50HZ | 380V | 1.7million M2 | 12M*80M/9M*40M | 10KW-15KW |
2. Technoloy features
There is not any requirement about high temperature and high pressure during production processing .the boarad will be formed at one time after roller-extruding under the conditions of normal temperation and normal pressure .this is a green environmental-protection project, because that there is no waste water ,waste materials and waste gas during its production processing .the finised board don’t need high temperature drying ,air-drying and watering ,and under the normal temperature ,they will dry well indoor .
3.Raw material and analysis
The product is formed with crushed crop straw or sawdust and inorganic chemical material at one time after rooer-extruding .the source og raw materials is widely and they are purchased easily for customers.
TAKE1200MM*2400MM*8MM MGO BOARD AN EXAMPLE IN CHINA
MGO BOARD CONSUMPTION COMPARABLE TABLE
| Names of materials | Each dosage |
| Magnesium | 2.978 yuan |
| Magnesium chloride | 1.23 yuan |
| Non-wovens | 0.85 yuan |
| Glass cloth | 1.05 yuan |
| Perlite | 0.62 yuan |
| Sawdust | 0.647 yuan |
4. Attention
The technology transfer fees of the composite mgo board:6000yuan (If you purchase our equipment,then the technology fee is free)
Sign the contract printed by Industry and Commerce B urear
We provide national grade certificate of key new product, quality and fireproofing grade ,and train2--3 technical personnel for you till then they master the recevant technology
| Advantages | ||
| Number | Item | Content |
| 1 | Low cost | Low labour and raw materials costs |
| 2 | Long life | Up to 30 years |
| 3 | Recycling use | Reused for more than 8 times |
| 4 | Environment protection | Environment-friendly raw materials used |
| 5 | Flexible layout | adjusted according to your requirement |
5.Service
After purchase the equipmrnt ,we will teach relevant technology for free,and will go to your factory for installation and testing until you can produce the qualified product by yourself .our company will train 2—3technical personnel for free until he can get the skill .we will take responsibility for provide techinal consulation and following –up service for a long time ,the equipment warranty period is one year.
