Thông tin chi tiết sản phẩm:
|
| Tên sản phẩm: | Máy làm tấm MgO | Năng lực sản xuất: | 1232 tờ |
|---|---|---|---|
| Kết cấu của vật liệu: | Thép | Bảo hành: | 1 năm |
| Lớp tự động: | Tự động | Nguyên liệu thô: | Mgo, mgcl, lưới sợi thủy tinh |
| Tiêu chuẩn: | CN | Kiểu: | Đứng miễn phí |
| Cân nặng: | 5T | Độ dày của bảng điều khiển: | có thể điều chỉnh |
| Nguồn gốc: | Sơn Trung Quốc | ||
| Làm nổi bật: | Construction Material Making Machinery,polyurethane sandwich panel machine |
||

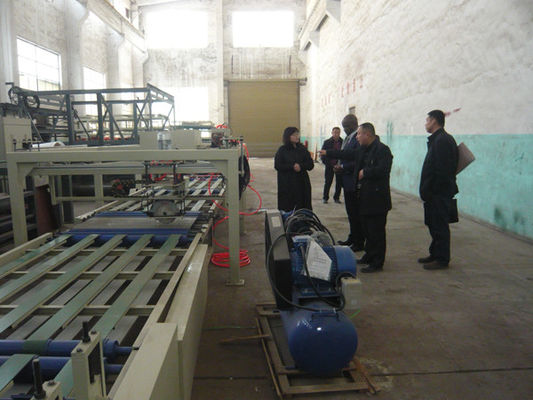

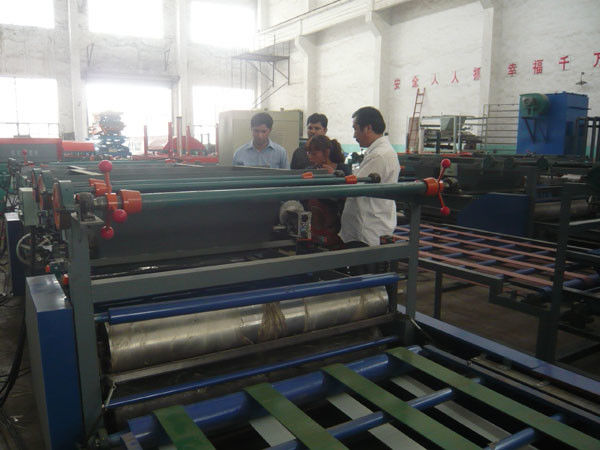

Semi-automatic MGO BOARD Production line
1. Production Line
MGO Board Production Line can produce all kinds of magnesium oxide boards, they can be used for ceiling, wall skirting, decorating of indoor wall and lining board for furniture. It can replace three-ply board, five-ply board, flakeboard, Medium Density Fiberboard and Gypsum Board. It is really environment friendly product and lower cost.
2. Raw material and cost analysis
The product is formed with crushed crop straw or sawdust and some inorganic chemical materials at one time after roller-extruding. The source of raw materials is widely and they are purchased easily for customers.
3. Technology features
There is not any requirement about high temperature and high pressure during production processing. The board will be formed at one time after roller-extruding under the conditions of normal temperature and normal pressure. This is a green environmental-protection project, because that there is no waste water, waste materials and waste gas during its production processing. The finished board doesn't need high temperature drying, air-drying and watering, and under the normal temperature, they will dry well indoor.
4. Equipment Model and Product Specification
According to different production, our equipment has 6 models for large-scale, middle-scale and small-scale. Our all equipment can produce board with same quality and specification but different production.
The board with the thickness of 2-60mm, the biggest width of 1, 300mm and unlimited length. So you can adjust the thickness of board at will. The standard specification of the board is 1.22mX2.44m.
|
Thickness |
2-24mm |
| Width | 600mm-1300mm |
| Length | 2400mm-3000mm |
| Capacity | 200 -----2500 square metres per day 8 hours |
| Configuration | customization |
5.products produced by this machine
| Technical Index for finished board |
1. Oxygenic index%: 90 |
| 2. Level combustion: SO | |
| 3. Vertical combustion: SO | |
| 4. Water content rate: 10.9% | |
| 5. Capacity: 1.15g/cm3 | |
|
6. Static bending intensity: 169.46Mpa |
|
| 7. Density: T/ m31.13 | |
|
8. Water resistance: Without chalking for 24 hours and there is no change on surface |
|
| 9. No Three-wastes (waste water, waste gas and waste residue), no pollution and environmental protection. |
6. After-sale
After purchased the equipment, we will teach relevant technology for free, and will go to your factory for installation and testing until you can produce the qualified product by yourself. Our company will train 2-3 technical personnel for free until he can get the skill. We will take responsibility for provide technical consultation and following-up service for a long time, the equipment warranty period is one year.
